Beskrivning

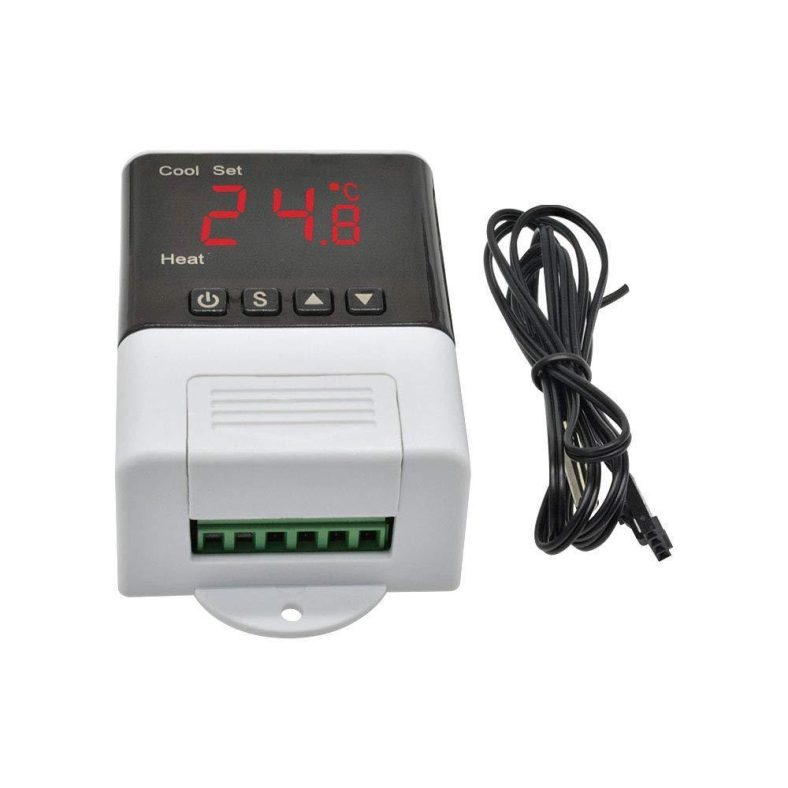

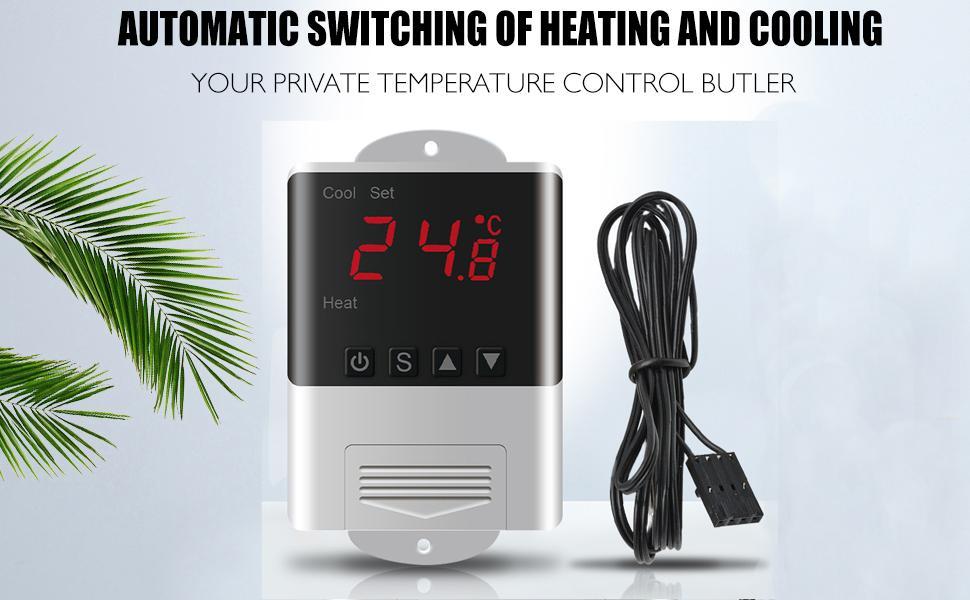

Intelligent Termostat DTC-1200 AC 110V 220V Temperaturkontroll LED med Avsläsningskabel
En utmärkt och bekväm multifunktionsanordning för att kontrollera temperaturen i akvarier. Akvarietemperaturens stabilitet är en av de avgörande faktorerna som bidrar till din fisks hälsa och säkerhet. Genom att använda temperaturregulatorn kan du ge en miljö med optimal temperatur för din fisk.
Parameters:
Product Model: DTC-1200
Supply Voltage: AC110~220V
Sensor: 1M NTC Sensor
Temperature range: -40°C~+99°C
Temperature measurement accuracy: ±1 °C (-40 °C ~ +70 °C)
Thermostat size: 75mm*56mm*34mm
Output capacity: cooling (compressor 3A) heating (10A/250VAC)
Operating Instructions:
When the thermostat is working normally, press and hold the power button for more than 3 seconds to turn off the thermostat. When the thermostat is off, press and hold the power button for more than 3 seconds to open the thermostat.
When the thermostat is working normally, the digital tube displays the current temperature measurement value, and performs automatic recognition conversion of the cooling heating operation mode.
When the measured temperature ≥ temperature set value + temperature difference set value, enter the cooling state, the
Cool indicator light is on, the cooling relay normally open contact is closed; the Cool indicator flashes, indicating that the cooling device is in the press delay protection state; when measuring the temperature ≤ temperature set value, the Cool indicator is off, and the normally open contact of the refrigeration relay is disconnected.
When the measured temperature ≤ temperature set value – temperature difference set value enters the heating state, the
Heat indicator light is on, the heating relay normally open contact is closed; when the measured temperature ≥ temperature set value, the Heat indicator is off, the heating relay normally open contact disconnect
Package Content:
-1 x Temperature Control Switch (Without retailing package) + cable
OBS: Produkt kan skilja sig lite från bild.
Skickas från vårt lager i SVERIGE.
