Beskrivning

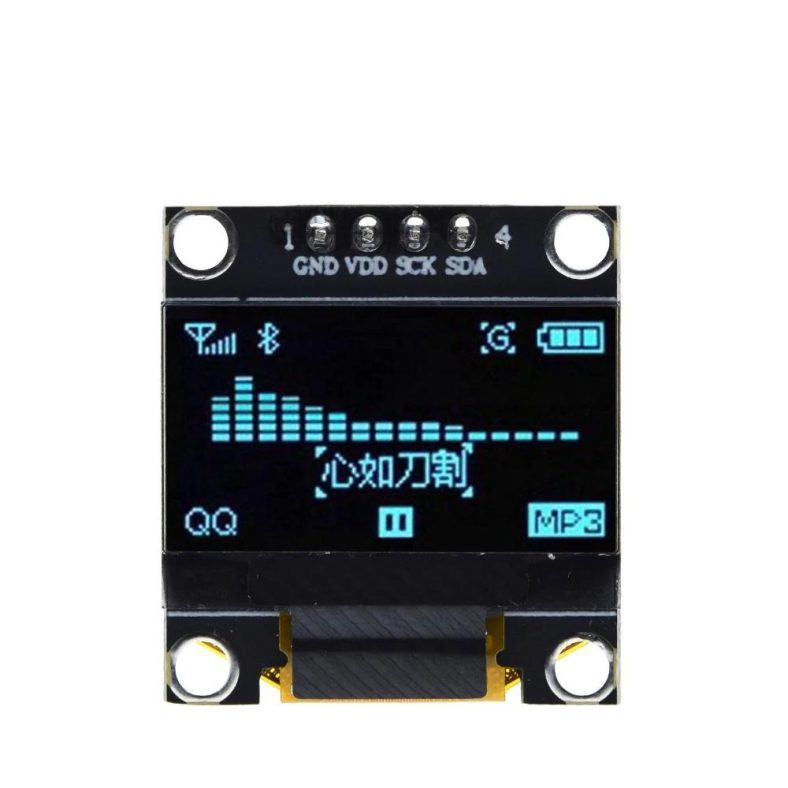

Blå / Gul OLED Skärm / Display / Displaymodul 0.96" 4 pins 128X64
Blå färg på grafiken.
Produktbeskrivning:
128*64 LED display module for Arduino, supports many control chip.
Fully compatible with Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08W
Super high brightness and contrast are adjustable
With embedded driver/controller
Interface type is IIC
Pin Definition: GND, VCC ,SCL, SDA
Pins: 4 pins
Voltage: 3V ~ 5V DC
Working Temperature: -30 ~ 70
Character Colors: Blue (as pictures show)
Drive Duty: 1/64 Duty
High resolution: 128 * 64
Panel Dimensions: 26.70* 19.26* 1.85mm/1.03*0.76*0.07 inch(approx)
Active Area: 21.74* 11.2mm /0.86*0.44 inch(approx)
Driver IC: SSD1306
Package Included:
1PC*128×64 Blue LED display module for Arduino
Skickas från vårt lager i Sverige.
